Rock Cycle

When we talk about a cycle in science, we are talking about something that goes in a circle.

Many of you probably consider that all rocks are the same. A rock is just a rock. You walk down the street and pick up a stone and it looks like all the other stones that you may have picked up. The stones that you pick up are fragments that came off a large rock. There are 3 major types of rocks. In this lesson, we will talk about each one individually.

Scientist tell us that the Earth began as a huge ball of liquid rock. Gradually this liquid cooled and turned into solid rock. This first rock type is called Igneous. It means fire formed. There still is liquid rock deep under the surface of the Earth. Some of this liquid rock makes it to the Earth's surface. On the surface it is called Lava. When this liquid rock is under the surface, it is called Magma.

There is a difference between Lava and Magma. Magma is liquid rock beneath the Earth's surface and it contains dissolved gases. Lava is liquid rock on the Earth's surface but it doesn't have dissolved gases. As the magma hits the Earth's surface, the gases that were dissolved in the liquid escape into the atmosphere. The more gases escaping the more violent the eruption of the lava as it comes out of the Earth. As long as the liquid rock is deep inside the Earth, the gases are not able to escape due to the surrounding solid part of the Earth.

Before we go any further, we should mention that the Earth is divided into 3 main layers. They are: Crust, Mantle, Core.

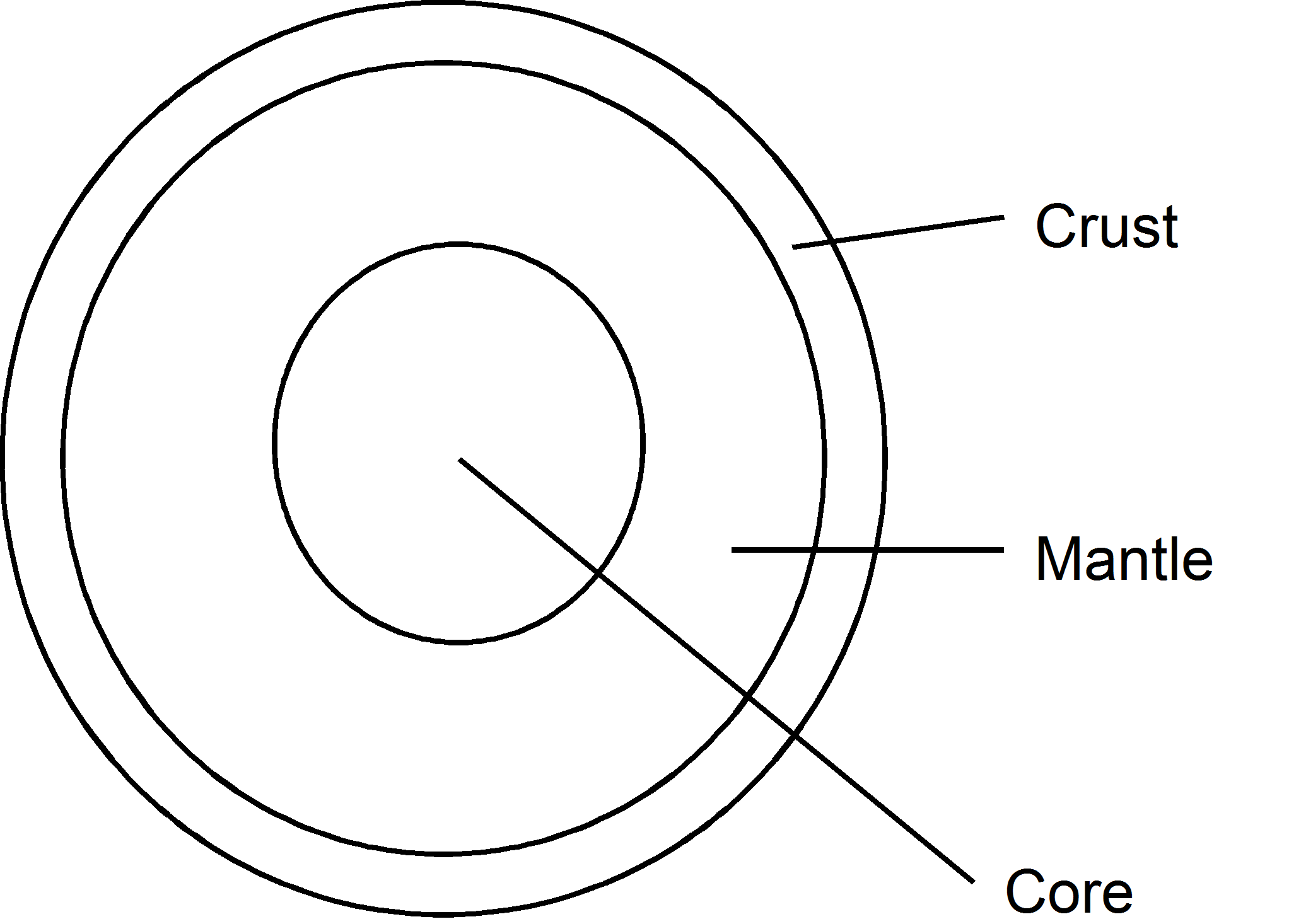

Crust mantle core

The Crust is mainly solid but it does contain the water of the Earth.

The mantle is not a solid and not a liquid. It is pliable. Almost like silly putty or maybe like a jello. The mantle material is able to flow slowly.

The core is divided into 2 parts. The inner core is made of a solid metal (iron and nickel). The layer around this inner core, the outer core, is a liquid.

The magma is in large chambers beneath the Earth's surface called Magma Chambers. They are very hot. Like a hot air balloon, it begins to rise up through the crust. It moves slowly. As it moves, some of the rock above it will crack. The magma squirts up through these cracks. When it reaches the surface, if it has a lot of dissolved gases, it erupts on the surface and forms a volcano. If there isn't much dissolved gas, the lava flows onto the surface and no volcano is formed. The lava flow can cover hundreds of square miles and be very thick. The reason for lava flow or volcano is the thickness of the magma. If the magma is thick, it becomes a volcano; if the magma is thin, it becomes a lava flow. What makes the magma thick or thin is the amount of the mineral Quartz that is in the magma.

I just mentioned the word mineral. I have been using the word rock. Is there a difference between a rock and a mineral ? Rocks are mixture(aggregates) of minerals. Think of a chocolate chip cookie. It is made up of cookie dough, chocolate chips and maybe some nuts. Each of these ingredients is like a mineral (made up of one thing). The chocolate chip cookie is like a rock ( made up of a bunch of other things). All rocks are mixture of minerals. Sometimes it is easy to see all the ingredients that make up the rock but other times you can not see the ingredients.

Since we are talking about igneous rocks, we will talk about the ingredients in igneous rocks. As mentioned before, magma is liquid rock beneath the Earths surface and lava is liquid rock on the surface of the Earth. Sometime the magma gets stuck beneath the surface of the Earth. When this happens the magma cools very slowly. Atoms in the magma move around and combine with other atoms. The atoms grow into minerals. These mineral become large enough to be seen by the eye. Several different minerals form.

On the other hand, if the magma makes it to the surface of the Earth as lava, it cools fast. Since it cools fast, the atoms don't have the chance to move around much. They don't have the opportunity to form minerals that can be seen by the eye.

Rocks that cool slow are called intrusive. You can see all the minerals that make them up. An example of this type of rock called granite. The two main ingredients in granite are feldspar and granite. There may be many other minerals also. But if it doesn't have feldspar and quartz, it is not called granite. Some of these intrusions, that formed miles beneath the Earth's surface, are now found on the surface of the Earth. You can see this if you visit Yosemite Park in California. These large intrusions that are now visible to us were once miles beneath the surface. The overlying rock was eroded away exposing the intrusions.

Rocks that cool fast are called extrusive. You can not see the individual minerals with the naked eye. Lava is an extrusive rock. There are different kinds of lava. Pumice is a lava that has so many air pockets that it can float in water. Obsidian is a type of lava that cooled extremely fast. Obsidian looks like glass.

(A good experiment to do at this time is to grow crystals. )

Do the following: Boil some water. You can use different chemicals to grow crystals of different shapes. Good safe chemicals that give good crystals are: table salt, epsom salt, and alum. (you can buy alum at most drug stores)

Use 400 ml beakers or equivalent. Fill the beakers 1/2 way with boiling water. Add a spoonful of one of the chemicals and stir until it dissolves. Continue doing this until no more of the chemical will dissolve. Pour the liquid into two other beakers. Do not pour the sediment at the bottom of the beaker into the two beakers. Place one beaker in the refrigerator and place the other beaker on the counter top. Let them set over night -- if you did not dissolve enough chemical into the boiling water it may take a couple of days. Look at the beakers daily. the one that cooled slowly should grow crystals large enough to be seen by the eye. Do this for all the chemicals. Have students view the crystals and make drawings of the individual crystals.

Volcanoes

There are 3 main types of volcanoes.

Type of Volcanoes

1. Cinder Cone

Cinder cone

2. Shield Volcano

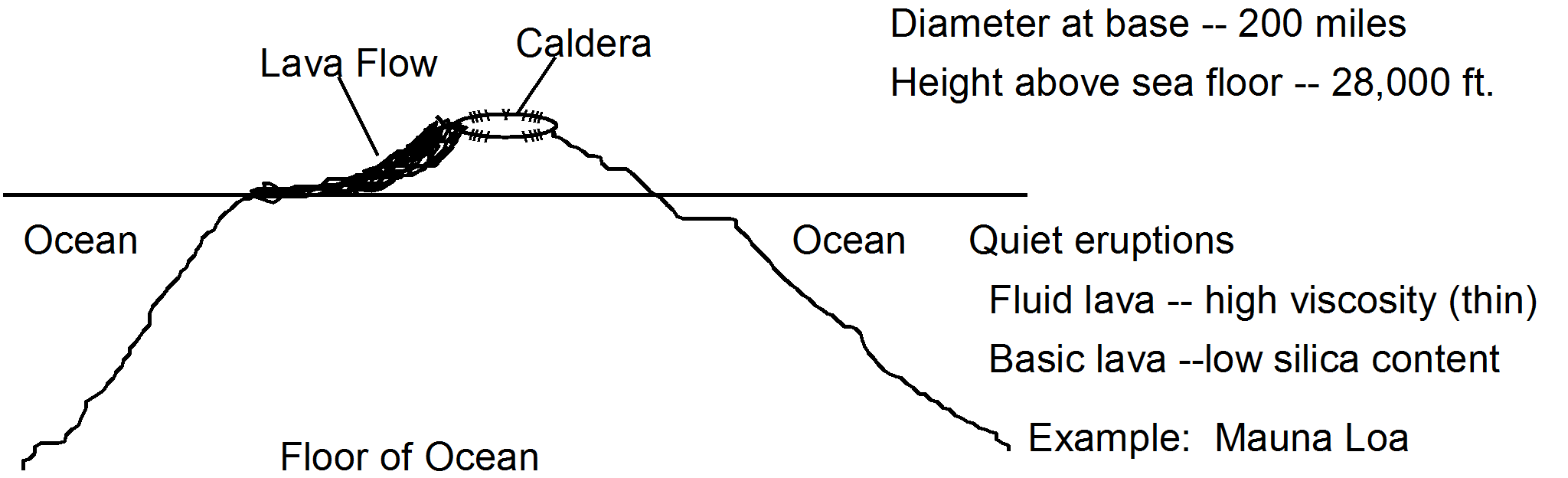

Shield volcano 7518408334 4613d109ba z
Rim of Volcano showing Lava Pool
7518228114 5d7614417a z
Close-up of Lava Pool
7518152224 3c82236983 z
Lava that flowed into the ocean

3. Strato Volcano

High and Steep

Made up of alternate layers of lava that was thrown up into the air, which solidifies before it hits the ground, and lava that flows onto the earth’s surface. The flowing lava also solidifies but becomes much harder. Very explosive and dangerous.

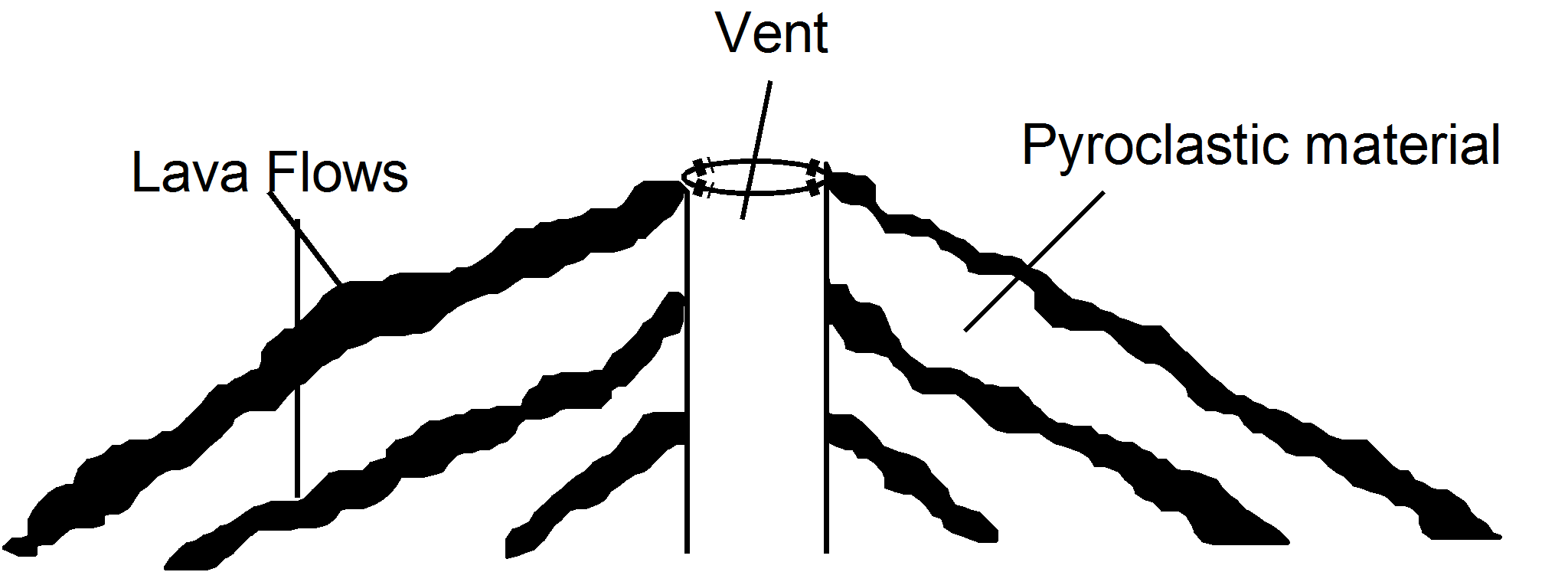

Strato volcano

Sedimentary Rock

Everything that we have been talking about is Igneous Rock. Remember we started out with the Earth being a huge ball of liquid rock. This rock began to cool, volcanoes formed; the volcanoes gave off gases and water vapor. The Earth began to develop an atmosphere. Clouds formed and rain fell. Water started run across the surface. Rivers formed, lakes formed, and the oceans formed. Once the water and the atmosphere formed, weathering (erosion) began.

Igneous rock

The weathering wears down the igneous rock and forms fragment (small pieces). These small pieces can be the size of dust, sand, gravel, or even boulders. These smaller pieces are what we call a Sediment.

The sediment gets washed down stream by flowing water. It eventually gets carried to the oceans. The Earth began 4 1/2 billion years ago. The sediment piled up for millions of years on the floor of the oceans. This meant that the thickness of the sediment reached thousands of feet.

The sediment at the bottom of the pile was compressed (squashed) by the overlying sediment. The ocean water had dissolved minerals in it. Two of the minerals are quartz and calcite. These two minerals act as a cementing agent (glue). If there was no cementing agent, it would be like trying to build a sand castle with dry sand. The sediment at the bottom of this pile is now turned into rock --- Sedimentary Rock. The process of changing a sediment to sedimentary rock is called Lithification.

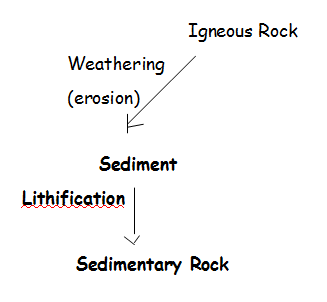

Sedimentary rock

Sedimentary Rock

There are many different kinds of sediments and consequently different kinds of sedimentary rocks. An easy way to understand how different sediments are formed is to understand the process called sorting. Consider a flowing body of water, like a river, flowing into a large body of water, like an ocean. The river flows down a hill and due to its velocity (speed) it will pick up various size particles; from very fine grains, like found in dirt, to gravel size grains. As the river enters the ocean the water velocity slows up. Since the velocity of the water decreases, it can not carry all the material that it did when it was traveling faster. The heaviest material that the river carried is the first material to be deposited. The smallest and lightest material is carried the furthest out into the ocean.

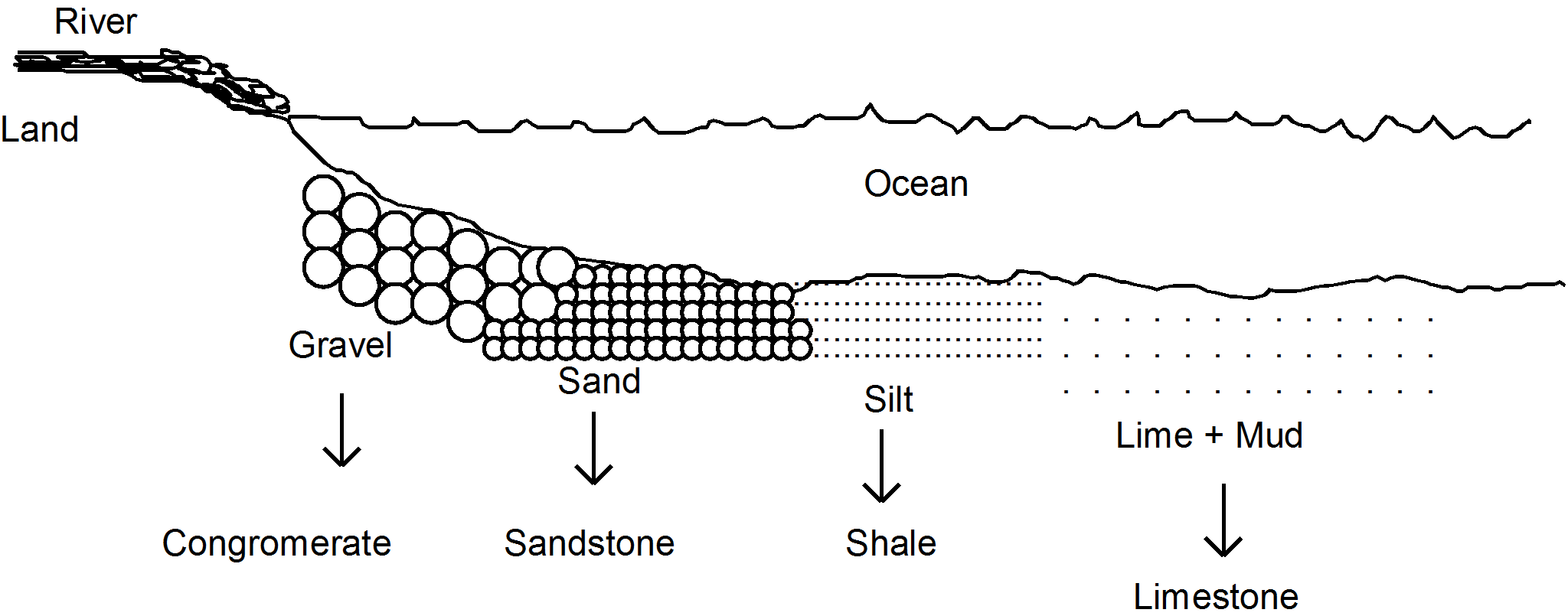

Sorting

Sorting

This sediment will eventually be turned into sedimentary rock.

  1. Sand is changed to the rock called Sandstone
  2. Silt is changed to the rock called Shale
  3. The real fine material is mixed with the remains of sea creatures (bones & shells) to form the rock called Limestone.

Since limestone is made up of the remains of many sea creatures, limestone has lots of fossils in it. All of the sedimentary rocks can contain fossils. Fossils are any record of past life.

Metamorphic Rock

Keep in mind that the sedimentary rock found at the bottom of the ocean goes deep into the crust of the Earth. The crust of the Earth is about 30 miles thick. As was mentioned earlier, when we talked about igneous rock, there are large magma chambers rising up through the crust. These magma chambers are very hot. The surrounding sedimentary is heated up and baked. The closer the sedimentary rock is to the magma chamber, the hotter it is. This rock is also under tremendous pressure from the overlying rock. This rock is baked. It has changed. It is now called Metamorphic Rock.

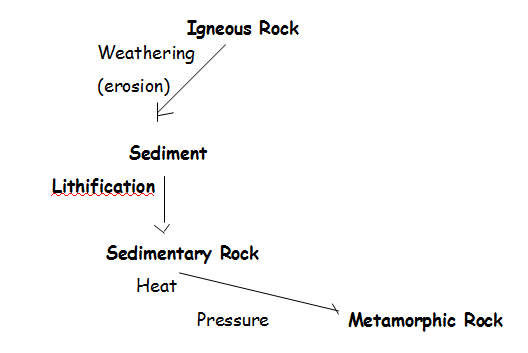

Metamorphic rock
  1. Sandstone is changed to Quartzite
  2. Shale is changed to Slate
  3. Limestone is changed to Marble

Metamorphic rocks are much harder then the sedimentary rock.

Sometimes the metamorphic rock get too hot and under more pressure, it will become pliable -- like silly putty. When it is in this state, the atoms are able to move around. Since the atoms are moving, they bump into other atoms and new compounds and minerals are formed. With the higher temperatures and pressures the slate can change into a rock called Schist. If the temperature and pressure the schist is changed to Gneiss (pronounced nice).

If the temperature and pressure continue to rise, the metamorphic rock will melt. It will become magma. This magma will eventually cool in place or make it to the Earth's surface and cool. It is now an igneous rock.

We have gone around in a circle and are back at the beginning. This is the Rock Cycle.

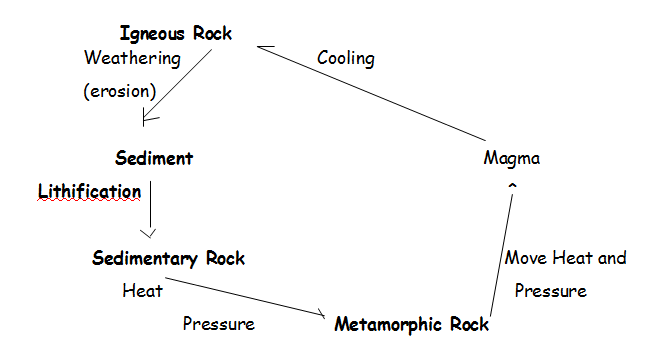

Rock cycle
